Nylon Screw Plugs

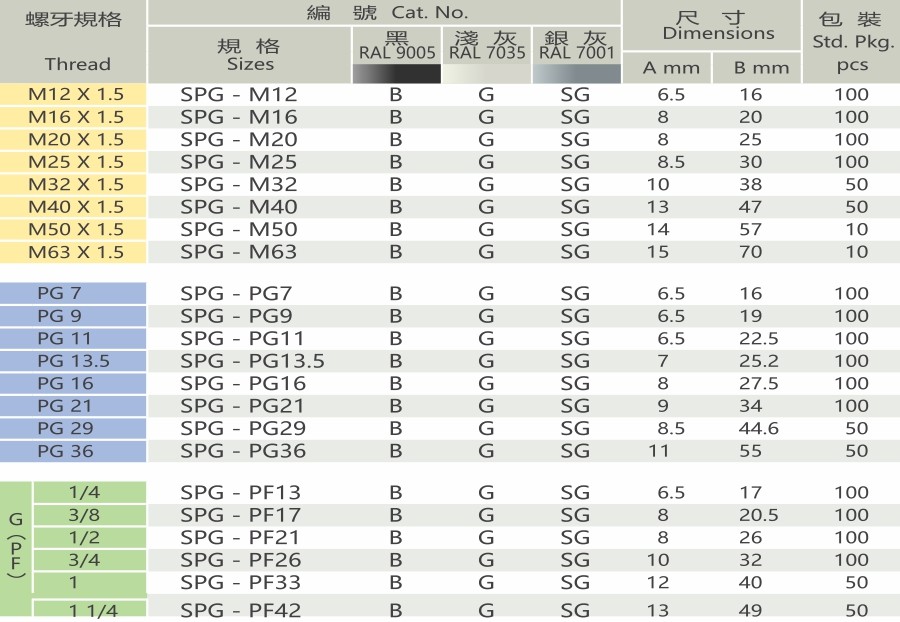

? Thread Type :Metric, PG and G ( PF ).? Material Data :Halogen-free Nylon PA 66 ( Flammability UL 94V-2 ) ; Contact us for V0 material.? IP Protection :IP68 ( when assembled with Yongcun’s hard t...
? Thread Type :Metric, PG and G ( PF ).
? Material Data :Halogen-free Nylon PA 66 ( Flammability UL 94V-2 ) ; Contact us for V0 material.
? IP Protection :IP68 ( when assembled with Yongcun’s hard twist washer )
IP67 ( when assembled without washer on the very plane surface ).
? Working Temp. :- 40 °C to 105 °C ( - 40 °F to 221 °F ). Short-Term to 160 °C ( 320 °F ).

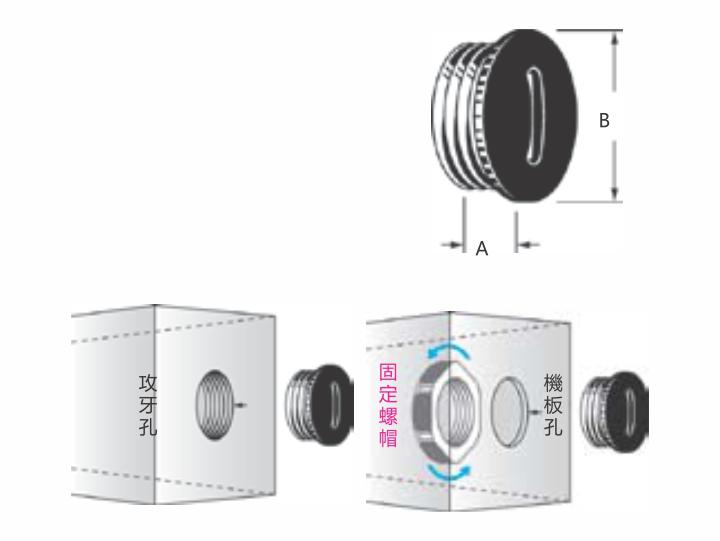

? Application :IP protection for spare holes :
1. Polyamide Blind Plugs are used where existing threaded holes need to be closed.
2. Assembled with Yongcun’s Lock Nuts for closing the holes without thread.
