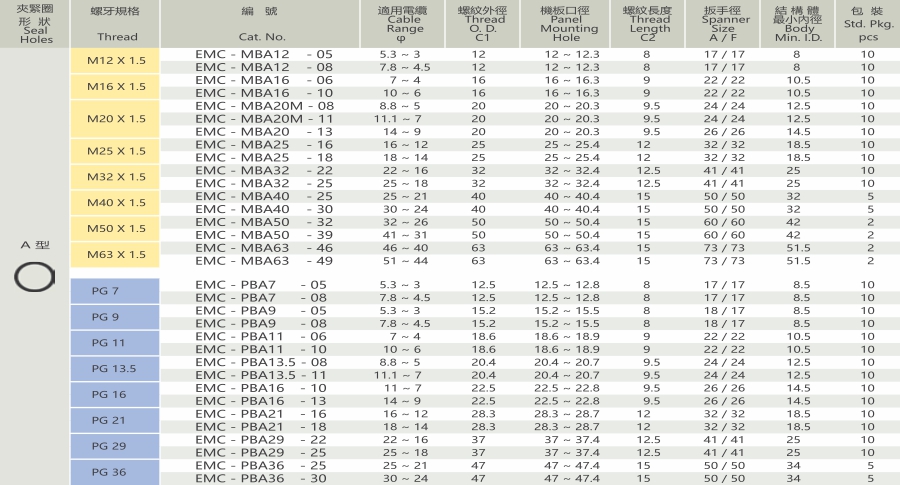

? Thread Type:Metric and PG.

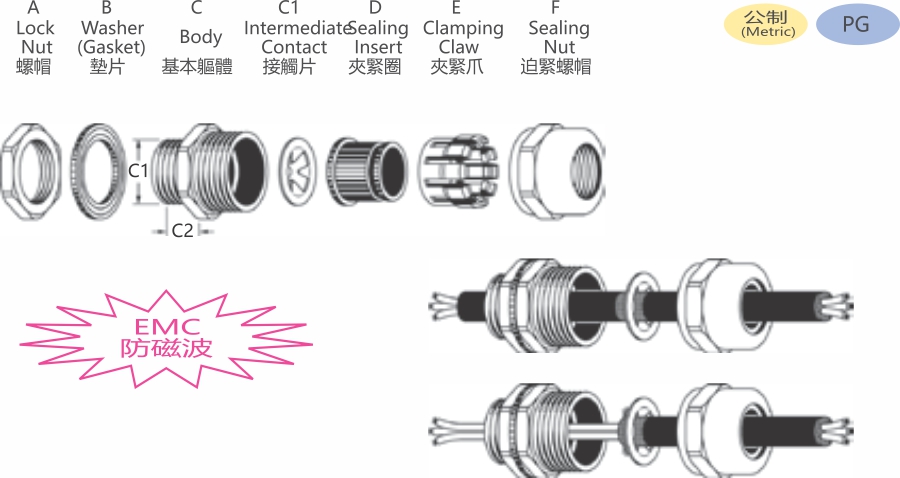

? Material Data : Brass nickel-plated ( JIS C3604 / DIN CuZn39Pb3 / ASTM C37800 ) for A.C.C1.F parts  ;  Nylon PA 66 for E part.

Weather-resistant EPDM rubbers for B.D parts.  ( NBR rubber is optional for oil-resistance applications )

? IP Protection :IP68 - 5 bar.

? Working Temp :- 40 °C to 105 °C ( - 40 °F to 221 °F ).  Short-Term to 160 °C ( 320 °F ).

? Application :Yongcun  EMC cable gland looked like a normal gland, but with its metal Intermediate Contact Disc ( C1 ) which can contact the screen of shielded cable, helps to achieve an optimum low-resistance EMC bonding and to be attached to withstand electromagnetic interference. Due to this simple earthing disc, the gland can provides continuous EMC protection and the cable range is the same without change when comparing with a normal gland. Besides, the high quality nickel-plated brass in combination with  Yongcun’s unique sealing & clamping units can provide the excellent mechanical properties ( anti corrosion / chemical & weather resistance / flame protection / high impact durability ) and the strong strain relief & watertight performance over the entire cable range to be the specific EMC-safe cable entry for outdoor / indoor applications.

 The Washer ( Gasket ) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.
