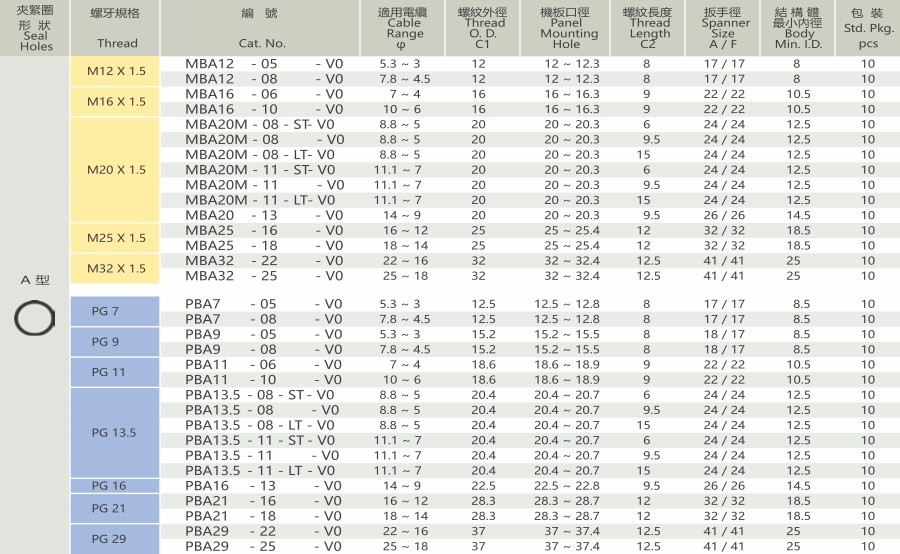

? Thread Type:Metric and PG.

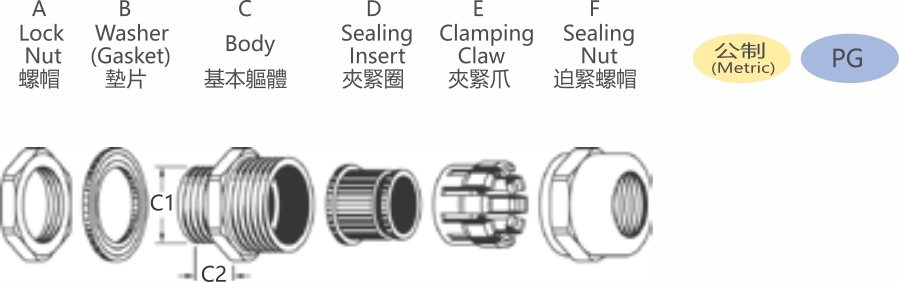

? Material Data : Brass nickel-plated ( JIS C3604 / DIN CuZn39Pb3 / ASTM C37800 ) for A.C.F parts  ;  PA 66 ( UL 94V-0 ) for E parts.

Flame-Retardant & Weather-Resistance Rubbers for B.D parts.

? IP Protection :IP68 - 5 bar.

? Working Temp :- 40 °C to 105 °C ( - 40 °F to 221 °F ).  Short-Term to 160 °C ( 320 °F ).

? Application :The extreme flameproof cable gland is assembled with high quality nickel-plated brass body and the flame-retardant clamp & gaskets which is mainly designed for human & property protection. In addition, the unique design from Yongcun’s special sealing & clamping system provides strong strain relief, waterproof and airtight abilities over the entire cable range. This special safety gland provides integrated performance on the excellent mechanical properties and highest flameproof protection which is suitable for used in outdoor / indoor cable entry applications with higher human protection in public buildings, store houses, undergrounds, tunnels, aeration systems, ships and supply installations, etc.

 Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. ( Sealing Inserts are not sold separately )

 Yongcun sealing inserts are available in split versions for mounting wires w th pre-assembled terminals or connectors. ( Minimum order quantity is required )

 The Washer ( Gasket ) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.
