Brass Cable Glands
? Thread Type:Metric, according to EN 60423.? Material Data :Brass nickel-plated ( JIS C3604 / DIN CuZn39Pb3 / ASTM C37800 ) for A.C.F parts ; Nylon PA 66 for E part.Weather-Resistant EPDM rubbers f...
? Thread Type:Metric, according to EN 60423.

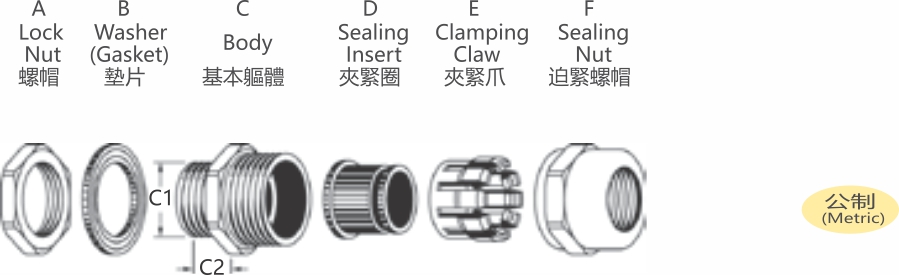

? Material Data :Brass nickel-plated ( JIS C3604 / DIN CuZn39Pb3 / ASTM C37800 ) for A.C.F parts ; Nylon PA 66 for E part.
Weather-Resistant EPDM rubbers for B.D parts. ( NBR rubber is optional for oil-resistance applications )
? IP Protection :IP68 - 5 bar.
? Working Temp. :- 40 °C to 105 °C ( - 40 °F to 221 °F ). Short-Term to 160 °C ( 320 °F ).
? Application :The robust & shiny plated brass cable gland with Yongcun’s unique clamping design provides outstanding strain relief power & watertight performance over the entire cable range ( 2 mm - 77 mm ) from the widest variety of bodies & sealing inserts. The high quality nickel-plated brass glands are considered the best cost / performance ratio for the metal-made cable entry systems to provide the excellent mechanical properties in anti corrosion, weather resistance, flame protection and high impact durability for outdoor / indoor cord-grip applications on electrical and electronics technologies, machines, telecommunications, wireless networking ODUs, power supplies, switches, junction boxes,solar PV modules, inverters, lightings, displays, traffics, signals, surveillance cameras, measurings, sensors and any kind of equipment.
