? Thread Type :Metric and PG.

? Material Data :Special heat resistance & high performance polyamide ( Flammability UL 94V-2 ) for A.C.E.F parts ;

Special heat & weather & oil & chemical resistance Viton? rubbers for B.D parts.

? IP Protection :IP68 - 5 bar.

? Working Temp. :- 20 °C to 150 °C ( - 4 °F to 302 °F )  ;  intermittent to approx. 180 °C ( 356 °F ).

? Application :The special body for this cable gland is made of high-performance & heat-resistance polyamide material to provide highest mechanical properties at high temperatures and an excellent resistance to wear and friction. Due to its very high material crystallinity, the polymer body is extremely good in durability and the resistances to both engine oil and diesel fuel, and has a light weight character to replace the metal cable gland. The gaskets are specially made of Viton? which is the most specified fluoroelastomer and well known for its outstanding heat resistance to 200°C ( 392°F ) without any aging ef fect after a long period and resistant against aggressive fuels / chemicals. The combination of these tow special king materials and accompanied with Yongcun’s outstanding design in watertight and strain relief performance, they will be the unmatched long life cable entry systems for outdoor / indoor applications in the  equirements of high heat & aggressive oils resistance such in automotive technology , machine, turbine, oil and petrochemical industry, etc.

 Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. ( Sealing Inserts are not sold separately )

 Yongcun sealing inserts are available in split versions for mounting wires w th pre-assembled terminals or connectors. ( Minimum order quantity is required )

 For product property & chemical resistance informations, please click here for reference.

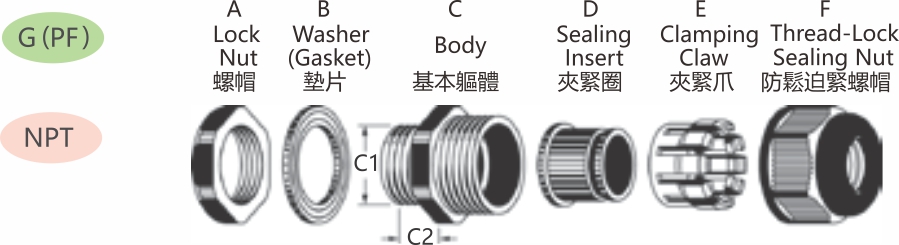

 The Washer ( Gasket ) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.
